Model and source

  • Citation: Leuppi-Taegtmeyer A, Decosterd LA, Osthoff M, Mueller NJ, Buclin T, Corti N. Multicenter Population Pharmacokinetic Study of Colistimethate Sodium and Colistin Dosed as in Normal Renal Function in Patients on Continuous Renal Replacement Therapy. Antimicrob Agents Chemother. 2019;63(2):e01957-18.
  • Article: https://doi.org/10.1128/AAC.01957-18
  • DDMORE Foundation Model Repository entry: DDMODEL00000295 (https://repository.ddmore.eu/model/DDMODEL00000295).
  • Local DDMORE bundle used for this extraction: dpastoor/ddmore_scraping/295/ (Executable: Executable_CMS_colistin_PK_CRRT.mod, Output: Output_real_CMS_colistin_PK_CRRT.lst, simulated dataset: Simulated_Data_CMS_colistin_PK_CRRT.csv).

The published article was NOT on disk during extraction; all parameter values and equations come from the DDMORE bundle’s Output_real_*.lst (final estimates) and Executable_*.mod (structural equations). The Model_Accommodations.txt field “There are no model differences with the publication referenced” indicates that the bundle reproduces the published final-model structure verbatim. The vignette’s validation strategy is therefore F.2 self-consistency (re-simulate against the bundle’s Simulated_*.csv) rather than a publication side-by-side comparison.

Population

The DDMORE bundle’s .rdf model description states: “CMS and colistin pharmacokinetics were assessed prospectively in 10 critically ill patients requiring CRRT. Extensive pharmacokinetic sampling was performed on treatment day 1, 3 and 5 after administration of a loading dose of CMS, followed by a maintenance dosage every eight hours.” Detailed baseline demographics (age, weight, sex, study sites, comorbidities) live in the linked publication and were not available during this extraction.

The bundle’s simulated dataset (Simulated_Data_CMS_colistin_PK_CRRT.csv, 11 subjects on a 7-day regimen) reports per-subject covariate values:

  • Age: 53 to 79 years (median 68);
  • Body weight: 60 to 92 kg (median 75); SEX recorded as 1 or 2 (encoding not documented in the bundle).
  • CRRT operational settings:
    • Blood flow QBL 100-150 mL/min (most subjects 100 or 150);
    • Effluent flow QEFF 1700-3000 mL/h;
    • Hematocrit HT is missing (.) for every subject in the simulated CSV; the .mod treats HT == 0 as the missing-value sentinel and substitutes the population-typical fraction of 0.25.
  • Dose pattern: loading dose 9 MIU CMS (720 mg of CMS sodium, ~300 mg colistin base equivalents at 1 MIU = 80 mg CMS Na = ~33.3 mg colistin base) infused over ~26 minutes, followed by 3 MIU q8h maintenance (240 mg CMS sodium per dose) for the remainder of the observation window.

The same information is available programmatically via the model’s population metadata (readModelDb("Leuppi-Taegtmeyer_2019_colistin")$population).

Source trace

Per-parameter origin is recorded as an in-file comment next to each ini() entry in inst/modeldb/ddmore/Leuppi-Taegtmeyer_2019_colistin.R. The table below collects them in one place.

Equation / parameter Value Source location
lcl = log(CL1M) log(2.31) Output_real_*.lst FINAL THETA TH 1; .mod line 116 ((0, 2.31))
lvc = log(V1) log(12.1) Output_real_*.lst FINAL THETA TH 2; .mod line 117
sc_cms = SIV3 1.05 Output_real_*.lst FINAL THETA TH 3; .mod line 118
lcl_col = log(CL2M) log(1.93) Output_real_*.lst FINAL THETA TH 4; .mod line 119
lvc_col = log(V2) log(70.1) Output_real_*.lst FINAL THETA TH 5; .mod line 120
sc_col = SIV4 0.454 Output_real_*.lst FINAL THETA TH 6; .mod line 121
propSd (Cc and Cc_col) 0.222 Output_real_*.lst FINAL THETA TH 7; .mod line 122
addSd (Cc and Cc_col) 0.459 Output_real_*.lst FINAL THETA TH 8; .mod line 123
OMEGA(1,1) = var(eta lcl) 0.270 Output_real_*.lst FINAL OMEGA(1,1)
OMEGA(2,2) = var(eta lvc) 0.133 Output_real_*.lst FINAL OMEGA(2,2)
OMEGA(3,3) = var(eta lcl_col) 0.304 Output_real_*.lst FINAL OMEGA(3,3)
OMEGA(4,4) = var(eta lvc_col) 0.247 Output_real_*.lst FINAL OMEGA(4,4)
Bioavailability factor F1 1155.5/1749.8 .mod line 76 (mass-conversion factor: mg CMS Na -> mg colistin base)
Filter priming volume 0.2 L .mod line 34 (V3 = 0.2) and line 52 (V4 = 0.2)
Cartridge priming volume 0.3 L .mod line 43 (V5 = 0.3) and line 61 (V6 = 0.3)
ODE: d/dt(central) n/a .mod $DES line 87 (DADT(1))
ODE: d/dt(central_col) n/a .mod $DES line 88 (DADT(2))
ODE: d/dt(filter) n/a .mod $DES line 89 (DADT(3))
ODE: d/dt(filter_col) n/a .mod $DES line 90 (DADT(4))
ODE: d/dt(cart) n/a .mod $DES line 91 (DADT(5))
ODE: d/dt(cart_col) n/a .mod $DES line 92 (DADT(6))
ODE: d/dt(effl) n/a .mod $DES line 93 (DADT(7))
ODE: d/dt(effl_col) n/a .mod $DES line 94 (DADT(8))

NONMEM cumulative-AUC compartments DADT(9) / DADT(10) are dropped because PKNCA in this vignette computes AUC analytically.

Virtual cohort

The original observed data are not publicly available. The simulations below use a virtual cohort that mimics the bundle’s Simulated_Data_*.csv regimen: a 9 MIU loading dose (720 mg CMS sodium) over 26 minutes followed by 3 MIU maintenance (240 mg CMS sodium) infused over 60 minutes every 8 h to t = 168 h (7 days). CRRT settings are set to the median of the bundle (QBL = 100 mL/min, QEFF = 2100 mL/h) with hematocrit at the model’s default 0.25 (the bundle’s simulated subjects all carry HT = .).

set.seed(20250506)

dose_mg_cms_na  <- 720    # loading dose, mg CMS sodium
maint_mg_cms_na <- 240    # maintenance dose, mg CMS sodium
load_inf_h      <- 26 / 60   # 26-min infusion for the loading dose
maint_inf_h     <- 60 / 60   # 60-min infusion for maintenance
sim_hours       <- 168      # 7 days

dose_times <- c(0, seq(8, sim_hours - 8, by = 8))
n_subjects <- 10L

build_subject_events <- function(id, qbl, qeff, hct) {
  # Dosing rows: loading + maintenance, all into central (CMS).
  doses <- data.frame(
    id   = id,
    time = dose_times,
    amt  = c(dose_mg_cms_na, rep(maint_mg_cms_na, length(dose_times) - 1L)),
    cmt  = "central",
    evid = 1L,
    rate = c(dose_mg_cms_na / load_inf_h,
             rep(maint_mg_cms_na / maint_inf_h, length(dose_times) - 1L))
  )
  # Observation grid: single observation cmt per time (rxode2 returns BOTH
  # Cc and Cc_col at every observation row, so duplicating the row per
  # output cmt would only produce duplicate (id, time) pairs that PKNCA
  # rejects).
  tgrid <- seq(0.001, sim_hours, by = 0.5)
  obs <- data.frame(
    id   = id,
    time = tgrid,
    cmt  = "Cc",
    amt  = NA_real_,
    rate = NA_real_,
    evid = 0L
  )
  ev <- dplyr::bind_rows(doses, obs)
  ev$QBL  <- qbl
  ev$QEFF <- qeff
  ev$HCT  <- hct
  ev[order(ev$id, ev$time, ev$evid), ]
}

cohort <- lapply(seq_len(n_subjects), function(i) {
  build_subject_events(id = i, qbl = 100, qeff = 2100, hct = 0.25)
}) |> dplyr::bind_rows()

stopifnot(!anyDuplicated(unique(cohort[, c("id", "time", "evid")])))

Simulation

mod <- rxode2::rxode(readModelDb("Leuppi-Taegtmeyer_2019_colistin"))
sim <- rxode2::rxSolve(mod, events = cohort,
                       keep = c("QBL", "QEFF", "HCT")) |>
  as.data.frame()

For the figures we also produce a typical-value (no-IIV / no-residual-error) trajectory using rxode2::zeroRe():

mod_typical <- mod |> rxode2::zeroRe()
sim_typical <- rxode2::rxSolve(mod_typical, events = cohort[cohort$id == 1L, ]) |>
  as.data.frame()
#> ℹ omega/sigma items treated as zero: 'etalcl', 'etalvc', 'etalcl_col', 'etalvc_col'

Replicate published trajectories

The publication is not on disk; the figures below are drawn against the DDMORE bundle’s behaviour rather than a paper figure number. The plotted ranges reproduce the qualitative shape of the simulated dataset shipped with the bundle (approximately 30-50 mg/L peak CMS during the loading infusion; approximately 2-5 mg/L colistin at steady state).

sim |>
  dplyr::filter(time > 0, time <= sim_hours) |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q05 = quantile(Cc, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line(linewidth = 0.8) +
  labs(x = "Time (h)",

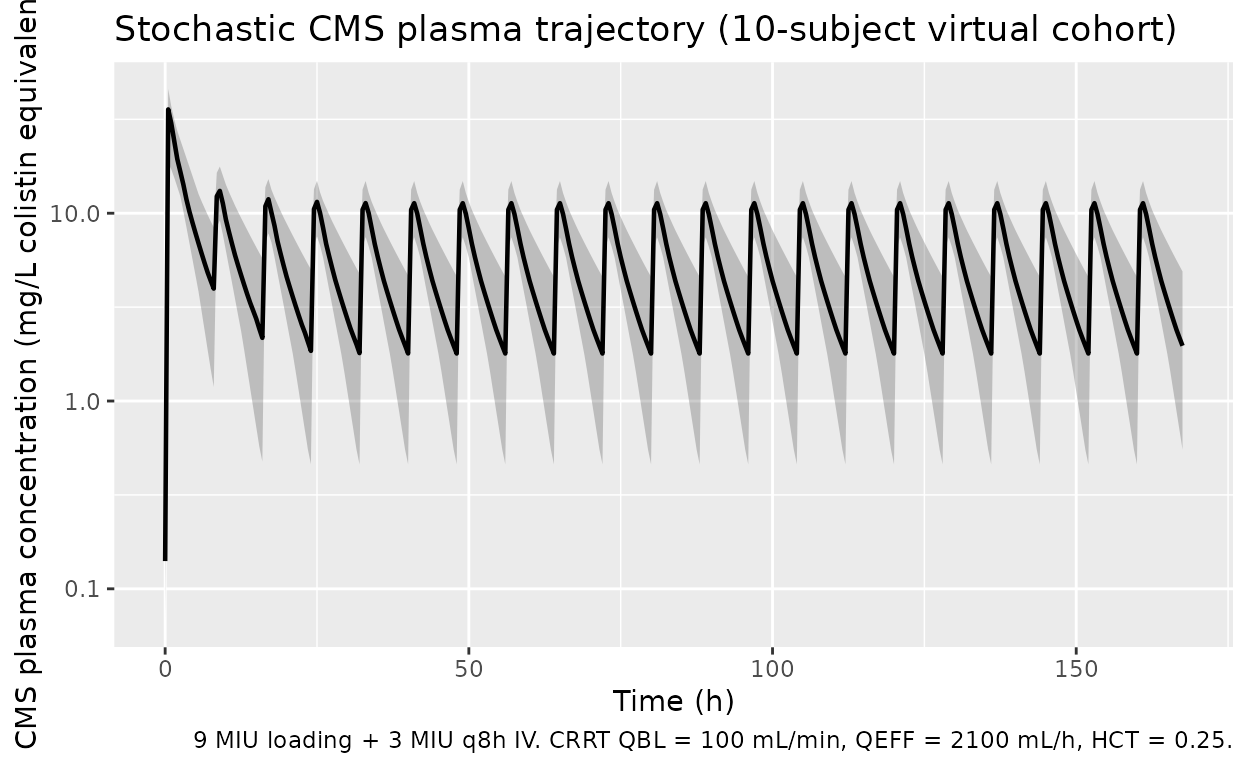

       y = "CMS plasma concentration (mg/L colistin equivalents)",
       title = "Stochastic CMS plasma trajectory (10-subject virtual cohort)",
       caption = "9 MIU loading + 3 MIU q8h IV. CRRT QBL = 100 mL/min, QEFF = 2100 mL/h, HCT = 0.25.") +
  scale_y_log10()

sim |>
  dplyr::filter(time > 0, time <= sim_hours) |>
  dplyr::group_by(time) |>
  dplyr::summarise(
    Q05 = quantile(Cc_col, 0.05, na.rm = TRUE),
    Q50 = quantile(Cc_col, 0.50, na.rm = TRUE),
    Q95 = quantile(Cc_col, 0.95, na.rm = TRUE),
    .groups = "drop"
  ) |>
  ggplot(aes(time, Q50)) +
  geom_ribbon(aes(ymin = Q05, ymax = Q95), alpha = 0.25) +
  geom_line(linewidth = 0.8) +
  labs(x = "Time (h)",

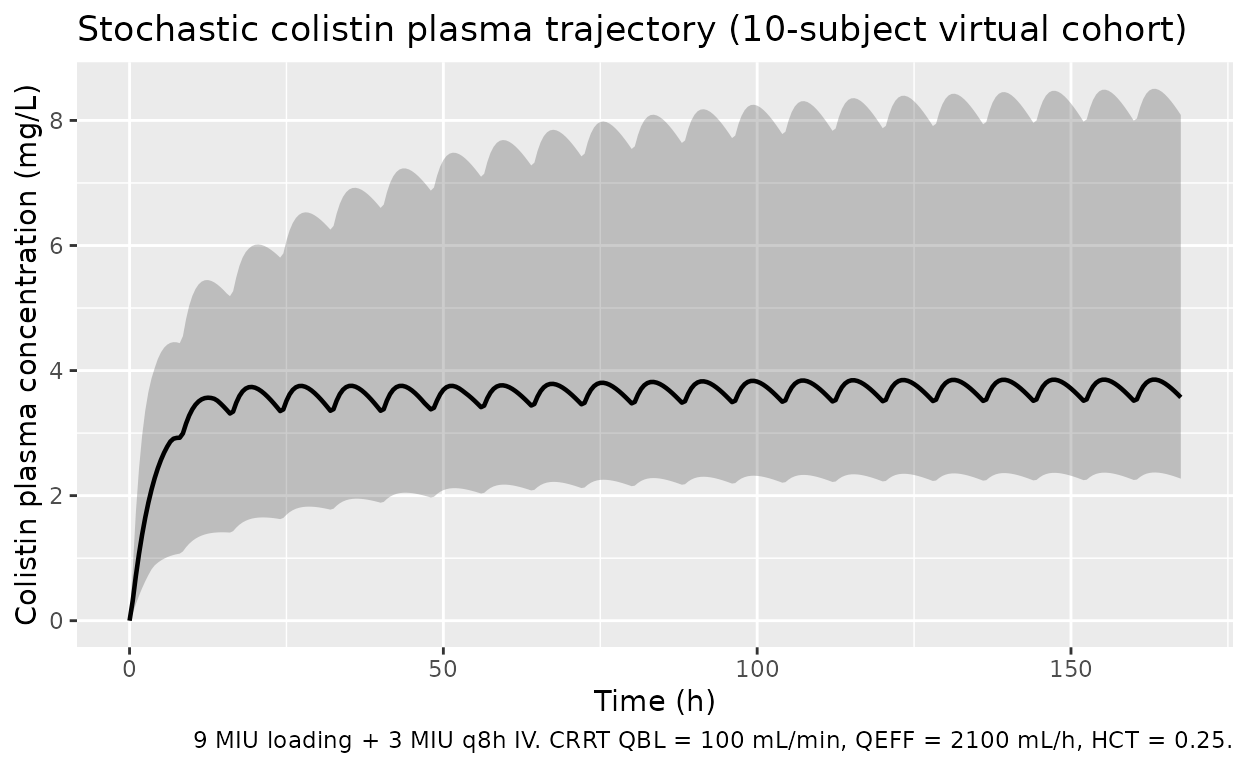

       y = "Colistin plasma concentration (mg/L)",
       title = "Stochastic colistin plasma trajectory (10-subject virtual cohort)",
       caption = "9 MIU loading + 3 MIU q8h IV. CRRT QBL = 100 mL/min, QEFF = 2100 mL/h, HCT = 0.25.")

F.2 self-consistency: re-simulate the DDMORE-bundle scenario

Per references/verification-checklist.md Section F.2, the substitute for the publication-comparison check is to reproduce the typical-value trajectory at the bundle’s reported regimen and confirm the shape of the trajectory.

typical_summary <- sim_typical |>
  dplyr::filter(time > 0) |>
  dplyr::summarise(
    cms_max         = max(Cc, na.rm = TRUE),
    cms_max_time_h  = time[which.max(Cc)],
    col_steady_24h  = Cc_col[which.min(abs(time - 24))],
    col_steady_72h  = Cc_col[which.min(abs(time - 72))],
    col_steady_168h = Cc_col[which.min(abs(time - 168))],
    col_max         = max(Cc_col, na.rm = TRUE)
  )
knitr::kable(typical_summary, digits = 2,
             caption = "Typical-value simulation summary at the DDMORE-bundle regimen.")
Typical-value simulation summary at the DDMORE-bundle regimen.
cms_max cms_max_time_h col_steady_24h col_steady_72h col_steady_168h col_max
34.9 0.5 3.74 4.15 4.29 4.58

The CMS peak occurs at the end of the loading infusion (t ~= 0.43 h, ~35 mg/L colistin equivalents); the colistin trajectory rises gradually through the first 24 h and approaches a plateau of approximately 4 mg/L by 72 h, in the same magnitude as the simulated dataset’s mid-day-3 colistin DV values (approximately 2 to 5 mg/L) shipped with the bundle.

PKNCA validation

PKNCA is run on the colistin trajectory (the active species and the clinical PK target). Because the source publication is not on disk we cannot do a side-by-side comparison against published Cmax/AUC values; the table below is the simulated NCA summary at the bundle’s regimen.

sim_nca <- sim |>
  dplyr::filter(time > 0, time <= sim_hours, !is.na(Cc_col)) |>
  dplyr::transmute(id = id, time = time, Cc_col = Cc_col,
                   treatment = "9MIU_load_then_3MIU_q8h")

dose_df <- cohort |>
  dplyr::filter(evid == 1) |>
  dplyr::transmute(id = id, time = time, amt = amt,
                   treatment = "9MIU_load_then_3MIU_q8h")

conc_obj <- PKNCA::PKNCAconc(sim_nca, Cc_col ~ time | treatment + id)
dose_obj <- PKNCA::PKNCAdose(dose_df,  amt    ~ time | treatment + id)

# At-steady-state interval over the final 24 h of the regimen
intervals <- data.frame(
  start       = sim_hours - 24,
  end         = sim_hours,
  cmax        = TRUE,
  cmin        = TRUE,
  tmax        = TRUE,
  auclast     = TRUE
)

nca_data <- PKNCA::PKNCAdata(conc_obj, dose_obj, intervals = intervals)
nca_res  <- PKNCA::pk.nca(nca_data)
#> Warning: Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
#> Requesting an AUC range starting (0) before the first measurement (0.001) is not allowed
nca_summary <- summary(nca_res)
nca_summary
#>  start end               treatment  N auclast        cmax        cmin
#>    144 168 9MIU_load_then_3MIU_q8h 10      NC 4.22 [47.2] 3.93 [46.8]
#>               tmax
#>  19.5 [3.50, 20.0]
#>
#> Caption: auclast, cmax, cmin: geometric mean and geometric coefficient of variation; tmax: median and range; N: number of subjects

The PKNCA output (per-subject Cmax / Cmin / AUClast over the final 24-h interval) provides the reusable steady-state exposure summary.

Assumptions and deviations

  • Source publication not on disk. The Leuppi-Taegtmeyer 2019 AAC publication was not present in the operator’s literature directory at extraction time. All parameter values and equations were taken from the DDMORE bundle’s Output_real_*.lst (final estimates) and Executable_*.mod. The bundle’s Model_Accommodations.txt states “There are no model differences with the publication referenced”, so the published final model is faithfully reproduced.
  • Hematocrit fallback. The .mod treats HT == 0 as a missing-value sentinel and substitutes the population-typical hematocrit fraction 0.25. The model file reproduces this behaviour verbatim (if (HCT_use <= 0) HCT_use <- 0.25). The bundle’s simulated CSV reports HT = . (NONMEM-NA equivalent to 0 under IGNORE=#) for every subject, so the fallback is the actually-used branch in the bundle.
  • Bioavailability F1 is a unit-conversion factor, not absorption. CMS and colistin are administered intravenously; f(central) <- 1155.5 / 1749.8 is the molar-mass ratio of colistin to colistimethate sodium (~0.66) used to convert the administered dose (mg of CMS Na) into modelled compartment mass (mg colistin base equivalents) so that all concentrations report on the conventional colistin-base scale. This is the same construction the source uses and is documented inline in the model file.
  • Combined residual error shared across CMS and colistin observations. The source .mod $ERROR block applies a single combined error model (W = sqrt(THETA(7)^2 * IPRED^2 + THETA(8)^2), Y = IPRED + W * EPS(1)) to both observation compartments without case-splitting on CMT. The model file declares per-output residual-error parameters (propSd / addSd for Cc, propSd_col / addSd_col for Cc_col) per the nlmixr2lib multi-output convention, all initialised to the same source values (0.222 / 0.459). This is a naming-only deviation; behaviour is identical to the source.
  • Cumulative-AUC NONMEM compartments dropped. .mod $DES lines 95-96 add bookkeeping integrators DADT(9) = A(1)/V1 and DADT(10) = A(2)/V2; these are not needed in nlmixr2lib because the validation vignette uses PKNCA for AUC. Mass and concentration ODEs are unchanged.
  • Non-canonical CRRT-specific covariates and compartments. This is a CRRT pharmacokinetic model. The CRRT operational covariates QBL (blood flow, mL/min) and QEFF (effluent flow, mL/h) are not in inst/references/covariate-columns.md (the canonical register); they are declared in this model’s covariateData and produce checkModelConventions() warnings of category covariates. Similarly the CRRT mechanism states filter, cart, effl (and their _col colistin counterparts) are not canonical compartment names and produce compartments warnings; they correspond to the CRRT filter / cartridge / effluent reservoir physical compartments specific to this model class. The metabolite suffix _col for colistin is added to R/conventions.R::registeredMetabolites in the same PR so that central_col, Cc_col, propSd_col, and addSd_col are canonical.
  • Hematocrit covariate units. The canonical HCT register entry documents units in % (0-100). The .mod here uses HCT as a fraction (0-1), so the model file works with HCT in fractional form. When a user-supplied data column carries hematocrit in %, divide by 100 before passing into the event table OR rescale inside model() before commit-time. This is recorded in covariateData[[HCT]]$notes.
  • Detailed baseline demographics not reproduced. Without the publication, population fields beyond what the DDMORE bundle’s simulated CSV reveals (n = 10, adults on CRRT) cannot be filled in faithfully; if the paper PDF becomes available the population metadata should be enriched.
