Tumour size + CA-125 K-PD in recurrent ovarian cancer (Wilbaux 2014) • nlmixr2lib

Model and source

Citation: Wilbaux M, Henin E, Oza A, Colomban O, Pujade-Lauraine E, Freyer G, Tod M, You B. Prediction of tumour response induced by chemotherapy using modelling of CA-125 kinetics in recurrent ovarian cancer patients. Br J Cancer. 2014;110(6):1517-1524. doi:10.1038/bjc.2014.75
Description: K-PD joint model of tumour size and CA-125 kinetics during platinum-based chemotherapy in recurrent ovarian cancer (CALYPSO phase III trial; carboplatin + paclitaxel or carboplatin + pegylated liposomal doxorubicin pooled)
Article: https://doi.org/10.1038/bjc.2014.75

Population

The model was fit to data from 535 patients with platinum-sensitive recurrent ovarian / peritoneal / fallopian cancer enrolled in the CALYPSO phase III trial (Pujade-Lauraine et al, 2010), which randomised 976 patients to either carboplatin + paclitaxel (CP) or carboplatin + pegylated liposomal doxorubicin (CD). Median age 61 years (range 27 to 82), median weight 69 kg (range 41 to 150), and all 100 percent female. The learning data set (n = 357) was used to estimate parameters and the validation data set (n = 178) was used for NPDE-based external evaluation. An additional 297 patients with non-measurable disease were excluded from model building but used to predict latent tumour response from CA-125 alone. Patient characteristics are in Table 1 of Wilbaux 2014. The same information is available programmatically via readModelDb("Wilbaux_2014_ovarianCancer_ca125")$population.

Because parameters for CP and CD were not significantly different in early fitting, a single set of drug-kinetic parameters was retained and the model uses an arbitrary dose of 1 a.u. per chemotherapy cycle.

Model structure

The published model has three coupled outputs:

Drug kinetics (K-PD) –two compartments depot (A1, receives the dose) and transit1 (A2, lags the drug effect). Both decay first-order at the same rate K. There is no actual PK; the K-PD chain is a phenomenological delay between dose administration and drug effect.

$\frac{dA_1}{dt} = -K\,A_1, \qquad \frac{dA_2}{dt} = K\,A_1 - K\,A_2$
Tumour dynamics –constant proliferation rate KPROL saturably inhibited by the K-PD drug amount in transit1, with a drug-independent linear decrease at rate KREDUC.

$\frac{d\,TS}{dt} = K_{PROL}\,\frac{A_{50}}{A_{50} + A_2} - K_{REDUC}\,TS$
CA-125 indirect response –basal production from normal tissue (KPROD1) plus stationary-tumour production (KPROD2) modulated by exp(K2 * VARTS), with first-order elimination at KELIM. The exponential keeps CA-125 production strictly positive even for fast- shrinking tumours.

$\frac{d\,CA}{dt} = K_{PROD1} + K_{PROD2}\,\exp(K_2\,V_{ARTS}) - K_{ELIM}\,CA$ where $V_{ARTS} = dTS/dt$ .

Initial conditions TS0 and CA0 are estimated population parameters. Inter-individual variability is log-normal on all ten typical-value parameters.

Source trace

Every value in inst/modeldb/therapeuticArea/oncology/Wilbaux_2014_ovarianCancer_ca125.R carries an in-file comment pointing at the source row in Table 2 of Wilbaux 2014. The same provenance is collected here.

Symbol	Value	Unit	Source
`K` (KEL)	0.019	1/day	Table 2 (K = 0.019, RSE 17.4 %)
`KPROL`	0.869	mm/day	Table 2 (KPROL = 0.869, RSE 10.2 %)
`A50`	0.162	a.u.	Table 2 (A50 = 0.162, RSE 23.7 %)
`KREDUC`	0.013	1/day	Table 2 (KREDUC = 0.013, RSE 6.5 %)
`KPROD1`	0.452	U/mL per day	Table 2 (KPROD1 = 0.452, RSE 10.9 %)
`KPROD2`	0.615	U/mL per day	Table 2 (KPROD2 = 0.615, RSE 7.1 %)
`K2`	21.4	day/mm	Table 2 (K2 = 21.4, RSE 3.8 %)
`KELIM`	0.037	1/day	Table 2 (KELIM = 0.037, RSE 7.2 %)
`TS0`	57.8	mm	Table 2 (TS0 = 57.8, RSE 2.8 %)
`CA0`	167	U/mL	Table 2 (CA0 = 167, RSE 16.9 %)
Tumour residual SD (above LOQ)	0.273	log-mm	Table 2 (above-LOQ residual)
Tumour residual SD (below LOQ)	0.576 FIX	log-mm	Table 2 (below-LOQ residual, M5 method)
CA-125 residual SD	0.165	Box-Cox U/mL	Table 2 (CA-125 residual)
CA-125 Box-Cox lambda	-0.16 FIX	unitless	Methods, Data management (R `car::powerTransform`)

The IIV CV percentages are similarly traceable to Table 2.

Steady-state and dimensional checks

Before reproducing the figures, confirm the structural identities hold.

mod <- readModelDb("Wilbaux_2014_ovarianCancer_ca125")
mod_typ <- rxode2::zeroRe(mod)
#> ℹ parameter labels from comments will be replaced by 'label()'

# No-treatment steady state. With VARTS -> 0 at TS_ss:
#   TS_ss   = KPROL / KREDUC
#   CA_ss   = (KPROD1 + KPROD2) / KELIM
ts_ss_expected <- 0.869 / 0.013
ca_ss_expected <- (0.452 + 0.615) / 0.037

ev_baseline <- et(seq(0, 4000, by = 100), cmt = "tumor_size") |>
  et(seq(0, 4000, by = 100), cmt = "ca125")
sim_baseline <- rxSolve(mod_typ, ev_baseline, returnType = "data.frame")
#> ℹ omega/sigma items treated as zero: 'etalkel', 'etalkprol', 'etala50', 'etalkreduc', 'etalkprod1', 'etalkprod2', 'etalk2', 'etalkout', 'etalrbase_tumor_size', 'etalrbase_ca125'
last <- sim_baseline[nrow(sim_baseline), ]

knitr::kable(
  data.frame(
    quantity = c("TS_ss (mm)", "CA_ss (U/mL)"),
    expected = c(ts_ss_expected, ca_ss_expected),
    simulated = c(last$tumor_size, last$ca125)
  ),
  digits = 4,
  caption = "Untreated steady states agree with the closed-form expressions to better than rounding."
)

Untreated steady states agree with the closed-form expressions to better than rounding.
quantity	expected	simulated
TS_ss (mm)	66.8462	66.8462
CA_ss (U/mL)	28.8378	28.8378

Dimensional sanity (verified line by line):

K * depot has units (1/day) * a.u. = a.u./day, matching d/dt(depot). ok.
K * transit1 is the same, matching d/dt(transit1). ok.
KPROL * A50/(A50 + A2) is mm/day times unitless = mm/day. KREDUC * TS is (1/day) * mm = mm/day. Both match d/dt(tumor_size). ok.
K2 * VARTS is (day/mm) * (mm/day) = unitless, so KPROD2 * (1 + K2*VARTS) retains the U/mL per day unit of KPROD2. KELIM * CA is (1/day) * U/mL = U/mL per day. Matches d/dt(ca125). ok.

Typical-value trajectory under chemotherapy

# Six cycles, every 21 days, 1 a.u. per cycle (CP-like cadence). The K-PD
# model treats CD and CP identically since the kinetic parameters did not
# differ significantly between the two arms.
dose_days <- seq(0, 5) * 21

ev_chemo <- et(amt = 1, time = dose_days, cmt = "depot") |>
  et(seq(0, 200, by = 1), cmt = "tumor_size") |>
  et(seq(0, 200, by = 1), cmt = "ca125")

sim_typ <- rxSolve(mod_typ, ev_chemo, returnType = "data.frame") |>
  dplyr::distinct(time, .keep_all = TRUE)
#> ℹ omega/sigma items treated as zero: 'etalkel', 'etalkprol', 'etala50', 'etalkreduc', 'etalkprod1', 'etalkprod2', 'etalk2', 'etalkout', 'etalrbase_tumor_size', 'etalrbase_ca125'

p1 <- ggplot(sim_typ, aes(time, tumor_size)) +
  geom_line(linewidth = 0.7) +
  geom_vline(xintercept = dose_days, linetype = "dashed", colour = "grey60") +
  labs(x = "Time (days)", y = "Tumour size (mm)",
       title = "Typical tumour-size response (CALYPSO-like Q3W schedule, 6 cycles)") +
  theme_bw()
p2 <- ggplot(sim_typ, aes(time, ca125)) +
  geom_line(linewidth = 0.7, colour = "firebrick") +
  geom_vline(xintercept = dose_days, linetype = "dashed", colour = "grey60") +
  labs(x = "Time (days)", y = "CA-125 (U/mL)",
       title = "Typical CA-125 response") +
  theme_bw()

print(p1)

print(p2)

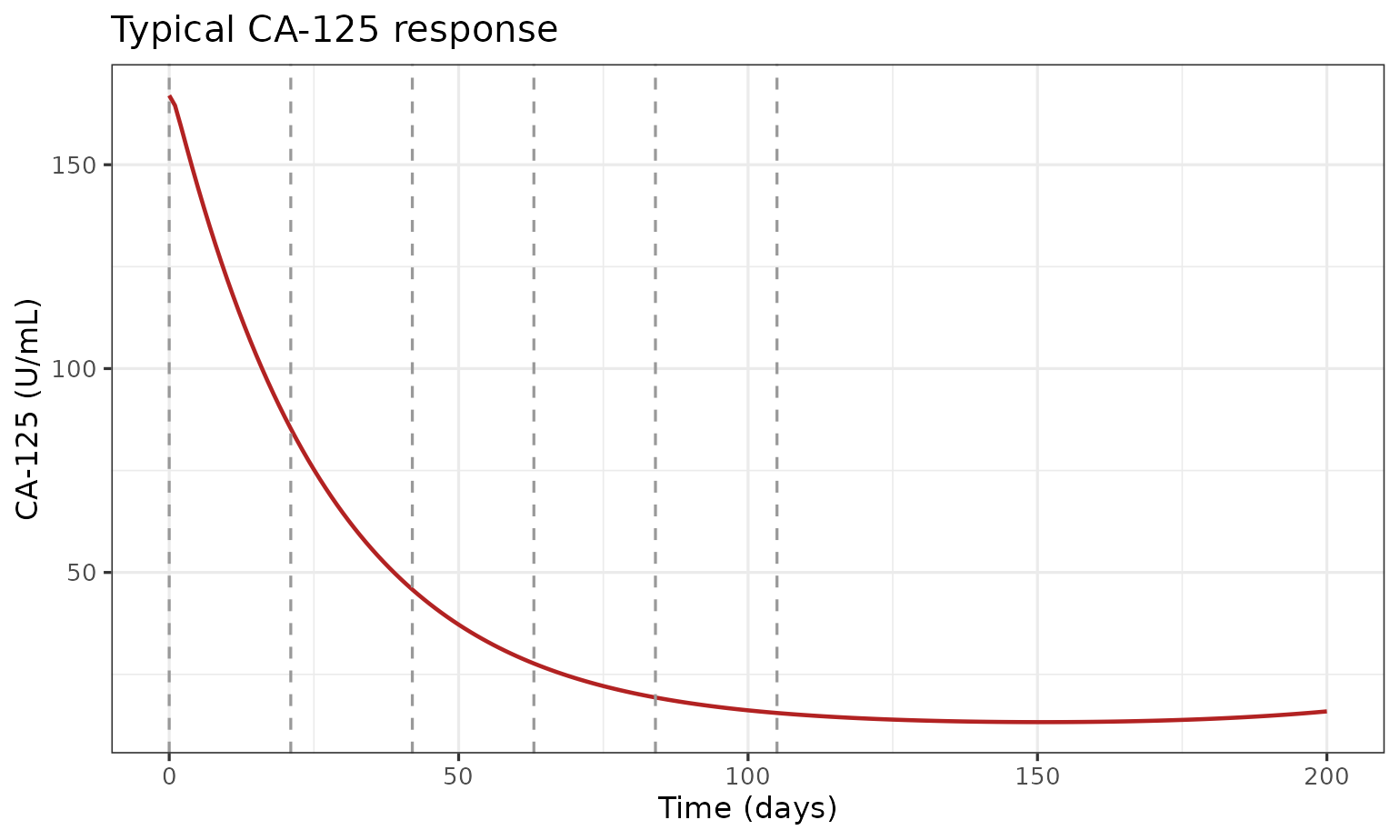

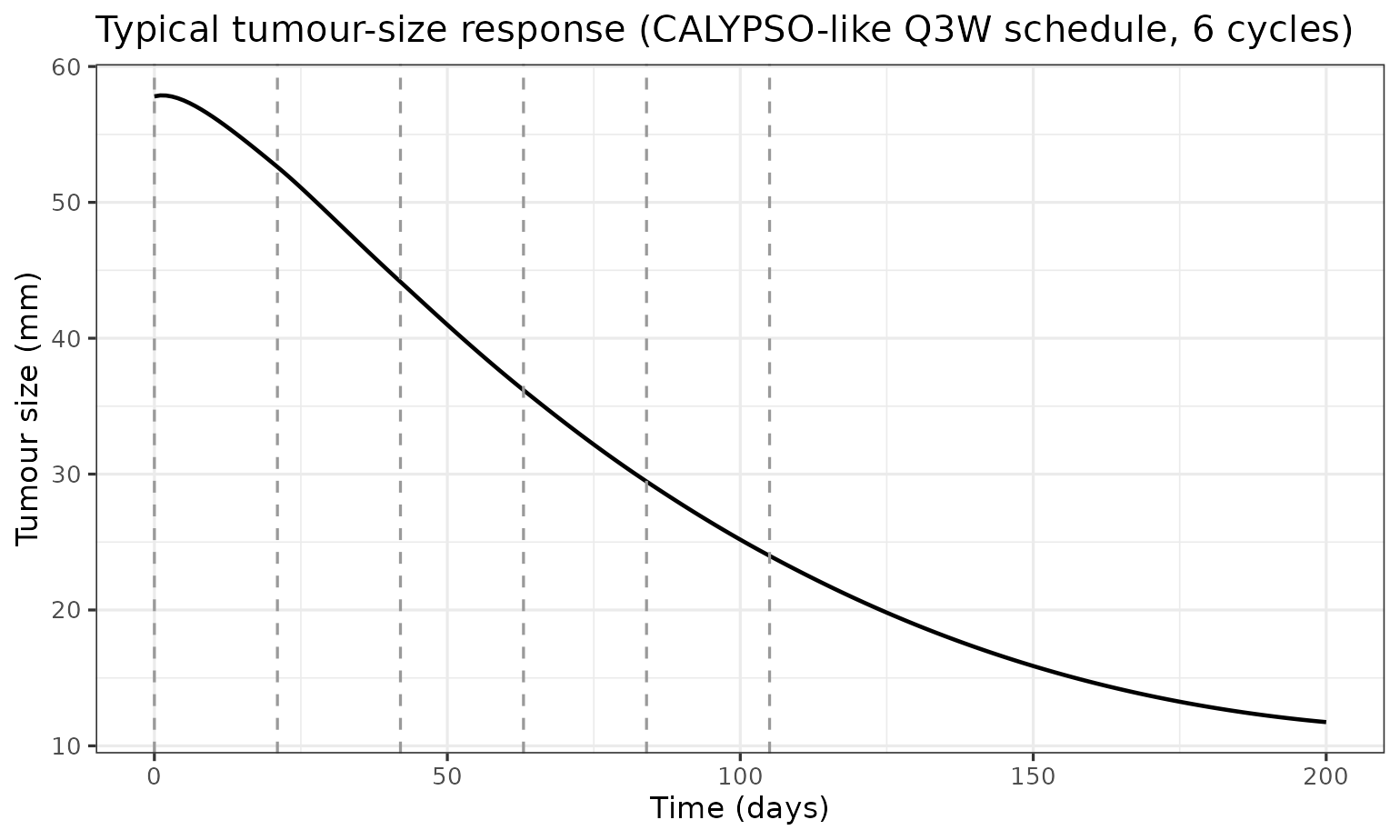

The typical patient’s tumour shrinks under treatment and CA-125 falls in parallel; both rebound after the last cycle because A2 decays back to zero, the saturable growth inhibition releases, and the tumour regrows toward the untreated steady state.

Replicate Figure 4 (individual trajectories under chemotherapy)

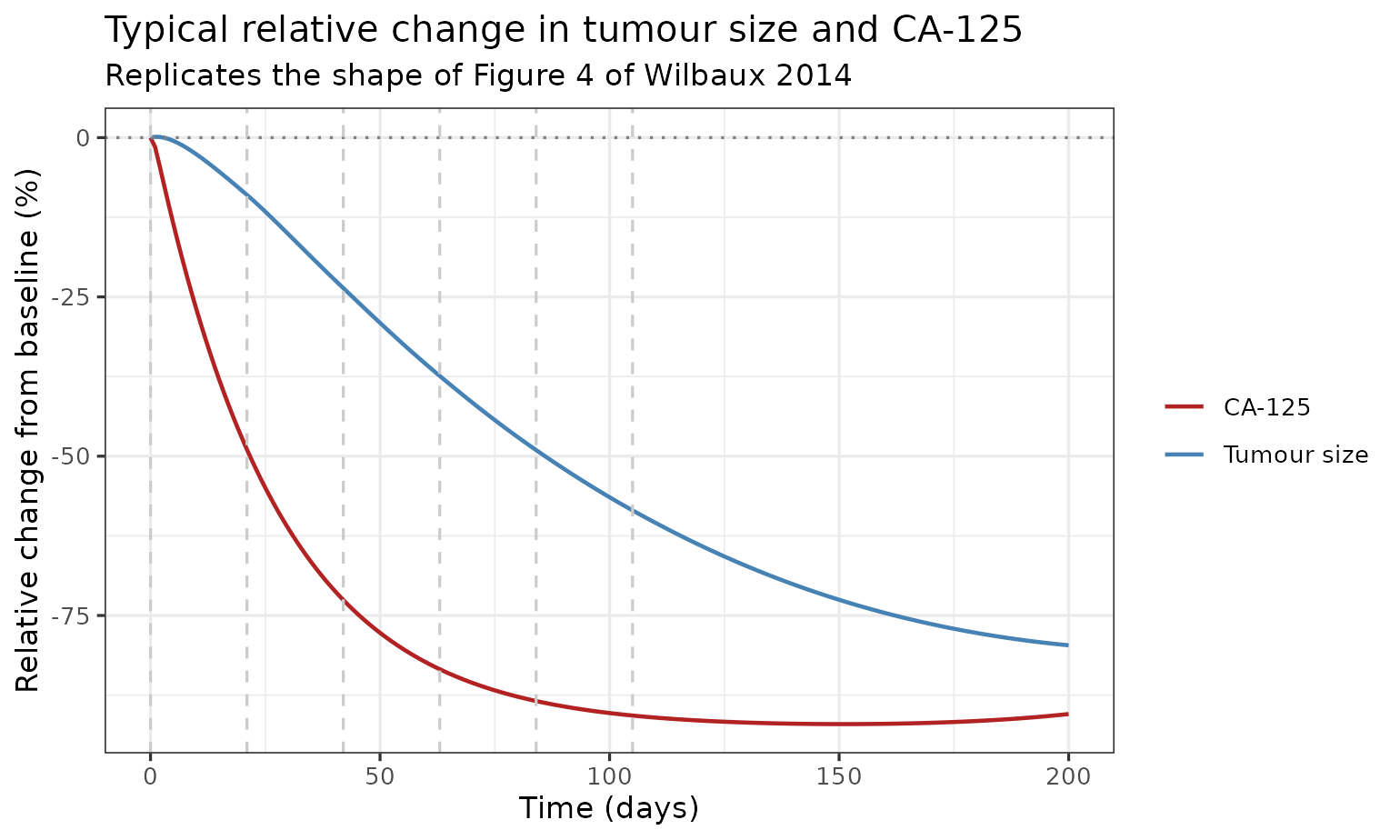

Figure 4A of Wilbaux 2014 shows individual model predictions of relative change in tumour size and CA-125 versus time for two example patients in the validation data set. The figure is patient-specific (Empirical-Bayes post-hoc); here we reproduce the corresponding typical-patient trajectory to confirm the dynamics qualitatively. Wilbaux 2014 Figure 4 uses relative change from baseline; we follow the same convention.

sim_rel <- sim_typ |>
  dplyr::transmute(
    time,
    rel_tumor = (tumor_size - tumor_size[1]) / tumor_size[1] * 100,
    rel_ca125 = (ca125      - ca125[1])      / ca125[1]      * 100
  ) |>
  tidyr::pivot_longer(starts_with("rel_"), names_to = "var", values_to = "rel")

ggplot(sim_rel, aes(time, rel, colour = var)) +
  geom_line(linewidth = 0.7) +
  geom_hline(yintercept = 0, linetype = "dotted", colour = "grey50") +
  geom_vline(xintercept = dose_days, linetype = "dashed", colour = "grey80") +
  scale_colour_manual(
    values = c(rel_tumor = "steelblue", rel_ca125 = "firebrick"),
    labels = c(rel_tumor = "Tumour size", rel_ca125 = "CA-125")
  ) +
  labs(x = "Time (days)", y = "Relative change from baseline (%)",
       colour = NULL,
       title = "Typical relative change in tumour size and CA-125",
       subtitle = "Replicates the shape of Figure 4 of Wilbaux 2014") +
  theme_bw()

Virtual cohort for the visual predictive check

set.seed(20140220)  # Wilbaux 2014 BJC online publication date

# Wilbaux 2014 reports very large IIV on several parameters (KPROD2 IIV
# 225.8 %CV, A50 IIV 167 %CV); sampling at the population level produces
# occasional extreme parameter draws that drive the coupled ODE system
# into very stiff regions. Use a moderate cohort and rxSolve's multi-id
# vectorisation rather than a long-format data frame.
n_subj <- 100
ev_one <- et(amt = 1, time = dose_days, cmt = "depot") |>
  et(seq(0, 200, by = 2), cmt = "tumor_size") |>
  et(seq(0, 200, by = 2), cmt = "ca125")

Replicate Figure 3 (visual predictive check)

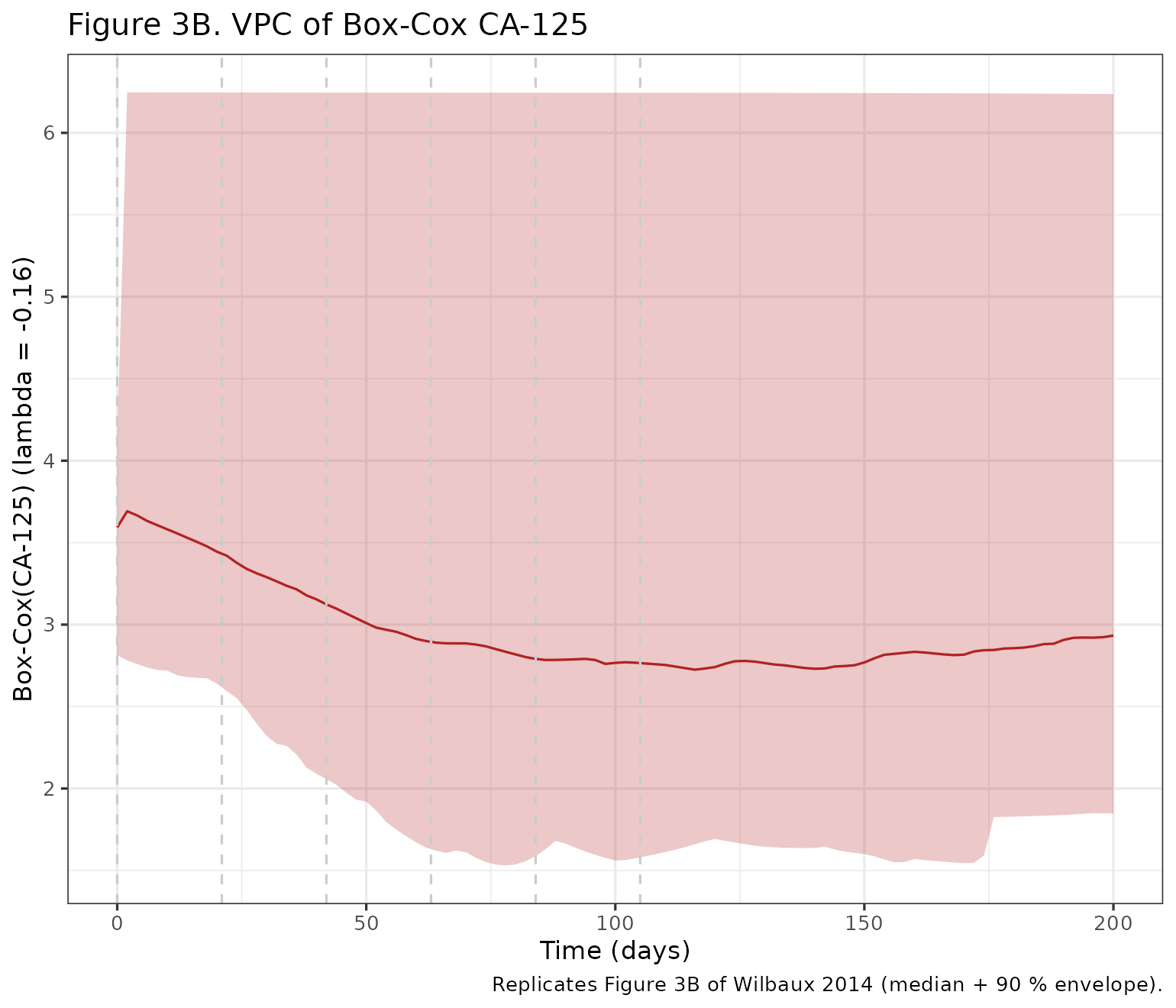

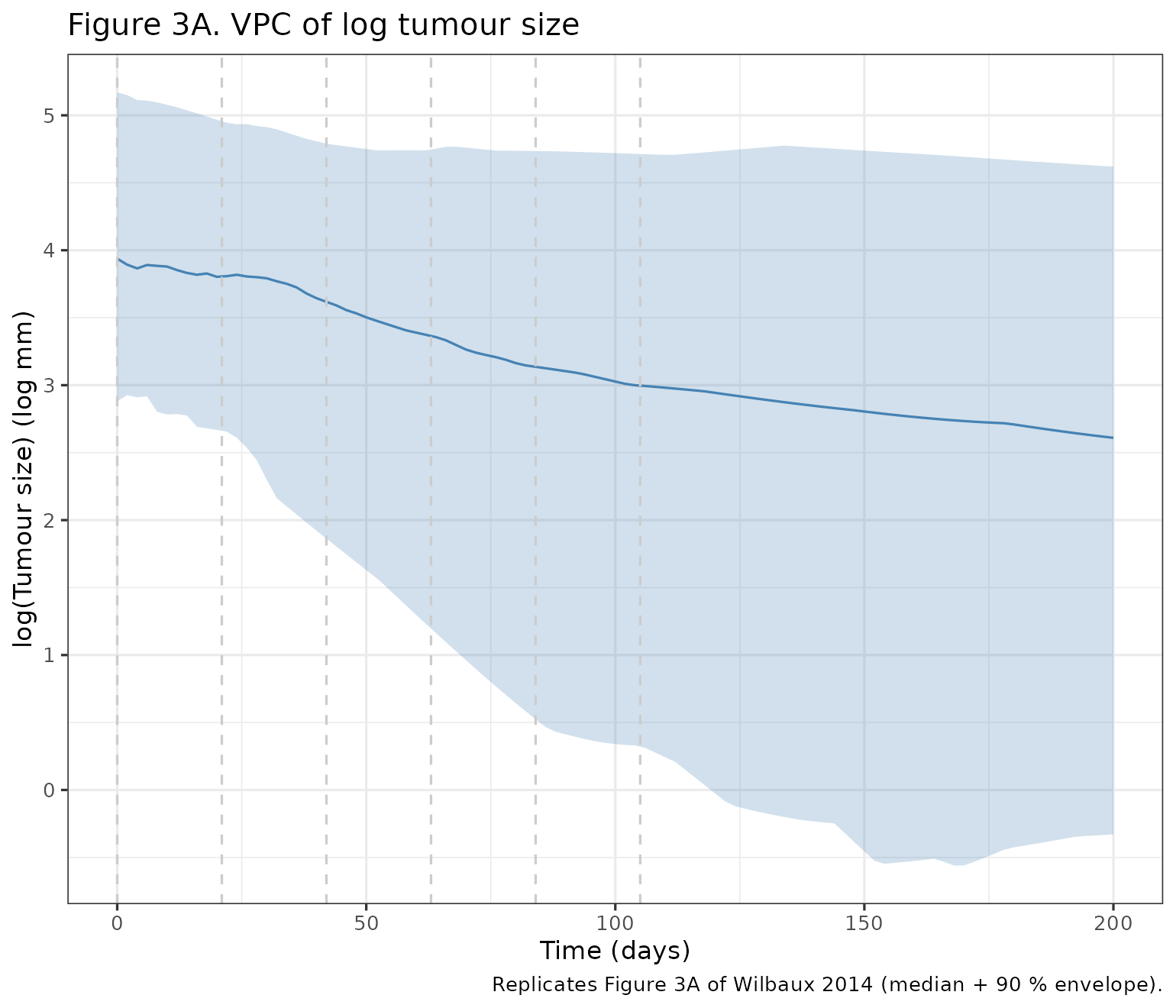

The published Figure 3 plots transformed values (log tumour size, Box-Cox CA-125 with lambda = -0.16) so that the very wide IIV reported in Table 2 does not dominate the percentile envelope. We follow the same convention here: the bands show the 5th, 50th, and 95th percentiles of the transformed simulated values. The CA-125 IIV in particular (KPROD2 226 % CV, A50 167 % CV, K2 109 % CV) drives a handful of extreme realisations on the linear scale; the transformations compress them into a sensible range.
