Imipenem + tobramycin HFIM time-kill (Landersdorfer 2018)

Source: vignettes/articles/Landersdorfer_2018_imipenem_tobramycin.Rmd
Landersdorfer_2018_imipenem_tobramycin.Rmd

Model and source

  • Citation: Landersdorfer CB, Yadav R, Rogers KE, Kim TH, Shin BS, Boyce JD, Nation RL, Bulitta JB. (2018). Combating carbapenem-resistant Acinetobacter baumannii by an optimized imipenem-plus-tobramycin dosage regimen: prospective validation via hollow-fiber infection and mathematical modeling. Antimicrobial Agents and Chemotherapy 62(4):e02053-17. doi:10.1128/AAC.02053-17.
  • Description: In vitro (carbapenem-resistant Acinetobacter baumannii FADDI-AB034). Mechanism-based pharmacodynamic model for an imipenem-plus-tobramycin combination in a 7-day hollow-fiber infection model (HFIM). Three pre-existing bacterial subpopulations differing in imipenem and tobramycin susceptibility (population 1 IPM-S/TOB-S, population 2 IPM-R/TOB-I, population 3 IPM-I/TOB-R) each follow a Bulitta two-state life-cycle growth model (S1 -> S2 -> 2*S1 with replication rate k21 fixed and per-subpopulation mean generation time 1/k12). Logistic carrying-capacity attenuation applies to the replicating step. Imipenem kills with a sigmoidal Hill function (Hill = 3 fixed) and tobramycin with an Emax function; mechanistic synergy is encoded as a discrete 70-fold reduction of the imipenem KC50 against population 3 when the tobramycin concentration meets or exceeds 1.15 mg/L (i.e. tobramycin permeabilizing the outer bacterial membrane toward imipenem). Imipenem and tobramycin concentrations are external time-varying inputs (covariates Cipm and Ctob); the model contains no human PK component.
  • Article: https://doi.org/10.1128/AAC.02053-17

The article’s supplemental material (Fig. S1 – targeted vs observed tobramycin profile; Fig. S2 – model fit panels; Fig. S4 – three- subpopulation schematic; S-ADAPT control stream) was not available on disk for this extraction. The model structure encoded here is the canonical Bulitta two-state life-cycle growth model (LCGM) consistent with the parameters reported in the main-paper Table 1; see the Assumptions and deviations section for a precise statement of which structural choices the supplement would have disambiguated.

Population

The model was fit to viable-count data from a 7-day dynamic in vitro hollow-fiber infection model (HFIM) against a single clinical carbapenem-resistant Acinetobacter baumannii (CRAB) isolate, FADDI-AB034, with imipenem MIC 32 mg/L and tobramycin MIC 2 mg/L. Target inoculum was approximately 10^7.2 CFU/mL to mirror bacterial densities in severe clinical infections. The experimental design exposed the isolate to three imipenem regimens (constant unbound concentrations of 7.6, 13.4, and 23.3 mg/L, corresponding to the 5th, 50th, and 95th percentile steady-state unbound concentrations from a 4 g/day continuous infusion with 1 g loading dose in critically ill patients), tobramycin monotherapy (7 mg/kg q24h 0.5-h infusions; the two-compartment unbound profile – observed peak 12.3 mg/L at 1.2 h, trough 1.37 mg/L at 23 h – was reproduced by switching the hollow- fiber pump flow rate at 5 h each day), and each imipenem level combined with the same tobramycin regimen.

The complete population metadata is available programmatically via readModelDb("Landersdorfer_2018_imipenem_tobramycin")$population.

There is no human or animal cohort: this is an in-vitro PD model. The paper reports population mean parameter point estimates with relative standard errors only and does not estimate any random-effect IIV / inter-replicate eta. The packaged model has zero etas and is intended for typical-value simulation.

Source trace

The model has three bacterial subpopulations indexed by their susceptibility profile against imipenem (IPM) and tobramycin (TOB):

Subpop Paper symbol IPM susceptibility TOB susceptibility Initial fraction
ss SS (pop 1) susceptible susceptible 1 - 10^-5.59 - 10^-3.22 (~ 1)
ri RI (pop 2) resistant intermediate 10^-5.59
ir IR (pop 3) intermediate resistant 10^-3.22

Each subpopulation has a two-state LCGM (Bulitta-style): a slow S1 -> S2 transition at rate k12_p (1 / “mean generation time”) and a fast doubling S2 -> 2*S1 at a fixed rate of 50 /h (file parameter lk21, log-transformed) shared across subpops. The slow rate is attenuated by the carrying-capacity logistic factor growth_attn = 1 - total / 10^logcfumax so that the no-drug asymptote lands at logcfumax = 10.1 log10 CFU/mL. Per Table 1 footnote (c), the IR subpopulation shares the SS mean generation time (no benefit of estimating it separately).

Imipenem killing is a sigmoidal Hill function with Kmax,IPM = 1.74 /h shared across subpops and a per-subpop KC50,p,IPM; the Hill coefficient is fixed at 3 (Table 1 footnote d). Tobramycin killing is an Emax function (Hill implicit 1) with per-subpop Kmax,p,TOB and KC50,p,TOB; Table 1 footnote (e) constrains Kmax,TOB,IR = Kmax,TOB,SS.

The paper’s “mechanistic synergy” is the load-bearing combination mechanism: when tobramycin in the bath meets or exceeds the threshold TOB_cut = 1.15 mg/L, the outer bacterial membrane of the IPM-intermediate / TOB-resistant subpopulation (pop 3, “ir”) is permeabilised, dropping KC50,IR,IPM 70-fold from 112 to 1.60 mg/L (Landersdorfer 2018 page 3 of the article, paragraph “Inclusion of mechanistic synergy”). The model encodes this as a discrete switch at tob_cut in model().

Parameter (paper symbol) File name Value Units Source
log CFU0 logcfu0 7.29 log10 CFU/mL Table 1
log CFUmax logcfumax 10.1 log10 CFU/mL Table 1
k21 (FIXED) lk21 50 1/h Table 1
1/k12,SS mgt_ss 33.7 min Table 1 (shared by pop 3 per fn c)
1/k12,RI mgt_ri 63.2 min Table 1
log MUT,IPM log10_mut_ipm -5.59 log10 fraction Table 1
log MUT,TOB log10_mut_tob -3.22 log10 fraction Table 1
Kmax,IPM lkmax_ipm 1.74 1/h Table 1
HILL,IPM (FIXED) lhill_ipm 3.0 (unitless) Table 1 (fn d)
KC50,SS,IPM lkc50_ss_ipm 0.175 mg/L Table 1
KC50,RI,IPM lkc50_ri_ipm 645 mg/L Table 1
KC50,IR,IPM (mono) lkc50_ir_ipm_mono 112 mg/L Table 1 (Ctob < tob_cut)
KC50,IR,IPM (combo) lkc50_ir_ipm_combo 1.60 mg/L Table 1 (Ctob >= tob_cut)
TOB cut tob_cut 1.15 mg/L Table 1
Kmax,TOB,SS lkmax_tob_ss 4.69 1/h Table 1 (also pop 3 per fn e)
Kmax,TOB,RI lkmax_tob_ri 0.992 1/h Table 1
KC50,SS,TOB lkc50_ss_tob 0.156 mg/L Table 1
KC50,RI,TOB lkc50_ri_tob 0.316 mg/L Table 1
KC50,IR,TOB lkc50_ir_tob 27.7 mg/L Table 1
SD CFU addSd 0.304 log10 CFU/mL Table 1

Compartment and observation conventions:

Compartment Units Meaning
bact_susceptible_susceptible1 CFU/mL IPM-S/TOB-S subpop, S1 state (pre-replicating)
bact_susceptible_susceptible2 CFU/mL IPM-S/TOB-S subpop, S2 state (replicating)
bact_resistant_intermediate1 CFU/mL IPM-R/TOB-I subpop, S1 state
bact_resistant_intermediate2 CFU/mL IPM-R/TOB-I subpop, S2 state
bact_intermediate_resistant1 CFU/mL IPM-I/TOB-R subpop, S1 state
bact_intermediate_resistant2 CFU/mL IPM-I/TOB-R subpop, S2 state
Cc log10 CFU/mL observation: log10 of total bacterial concentration (+ 1 CFU floor)

Helper: build an HFIM scenario

The HFIM uses external drug input – imipenem at a constant unbound concentration in the bath, tobramycin as a q24h pulse with a piecewise elimination pattern. We pass both as time-varying covariates Cipm and Ctob on the event table; the rxode2 simulator interpolates between rows.

The helper below builds an et() table that:

  • enumerates observation times across a multi-day window,
  • assigns a constant Cipm (the paper’s three percentile imipenem regimens are 7.6, 13.4, and 23.3 mg/L; for monotherapy controls set Cipm = 0),
  • assigns a Ctob profile that is either zero (for IPM-monotherapy arms) or the experimental q24h two-compartment profile. The two-compartment profile is approximated by a piecewise function matching the observed peak (12.3 mg/L at 1.2 h), the 5 h pump-flow inflection, and the 23 h trough (1.37 mg/L) on each 24 h cycle.
mod <- readModelDb("Landersdorfer_2018_imipenem_tobramycin")

# Approximate the experimental tobramycin profile within one 24 h
# cycle. Cmax 12.3 mg/L at 1.2 h after a 0.5 h infusion, Cmin 1.37
# at 23 h, with a flow-rate change at 5 h yielding two log-linear
# slopes. The pre-peak rise is approximated as a linear ramp to
# Cmax over the 0.5 h infusion (the original profile is a 30 min
# IV infusion, so the pre-peak ramp is brief and not modelled in
# detail by the paper either; the model uses the post-peak decay).
tob_profile <- function(t_h, q = 24) {
  # t_h: time (h) within the current cycle [0, q)
  cmax <- 12.3; tmax <- 1.2
  c_5h <- exp(log(cmax) + (5 - tmax) * (log(1.37) - log(cmax)) / (23 - tmax) * 0.30)  # mid-cycle anchor
  # Alpha phase from peak to 5 h, slope k_alpha
  k_alpha <- (log(cmax) - log(c_5h)) / (5 - tmax)
  # Beta phase from 5 h to 23 h, slope k_beta
  k_beta  <- (log(c_5h) - log(1.37)) / (23 - 5)
  ifelse(t_h <= 0,           0,
  ifelse(t_h < tmax,         cmax * (t_h / tmax),                    # linear pre-peak ramp
  ifelse(t_h <= 5,           cmax * exp(-k_alpha * (t_h - tmax)),    # alpha
  ifelse(t_h <= 23,          c_5h * exp(-k_beta  * (t_h - 5)),       # beta
                              1.37 * exp(-0.5 * (t_h - 23))))))      # short post-23 decay
}

build_scenario <- function(label, cipm = 0, use_tob = FALSE,
                           t_end = 24, by = 0.25) {
  times <- seq(0, t_end, by = by)
  ctob <- if (use_tob) tob_profile(times %% 24) else rep(0, length(times))
  data.frame(
    id   = 1L,
    time = times,
    Cipm = cipm,
    Ctob = ctob,
    amt  = 0,
    evid = 0,
    scenario = label
  )
}

simulate <- function(scn) {
  out <- as.data.frame(rxode2::rxSolve(mod, events = scn,
                                       keep = c("scenario", "Cipm", "Ctob")))
  out
}

Replicate Figure 1: 7-day HFIM time-kill profiles

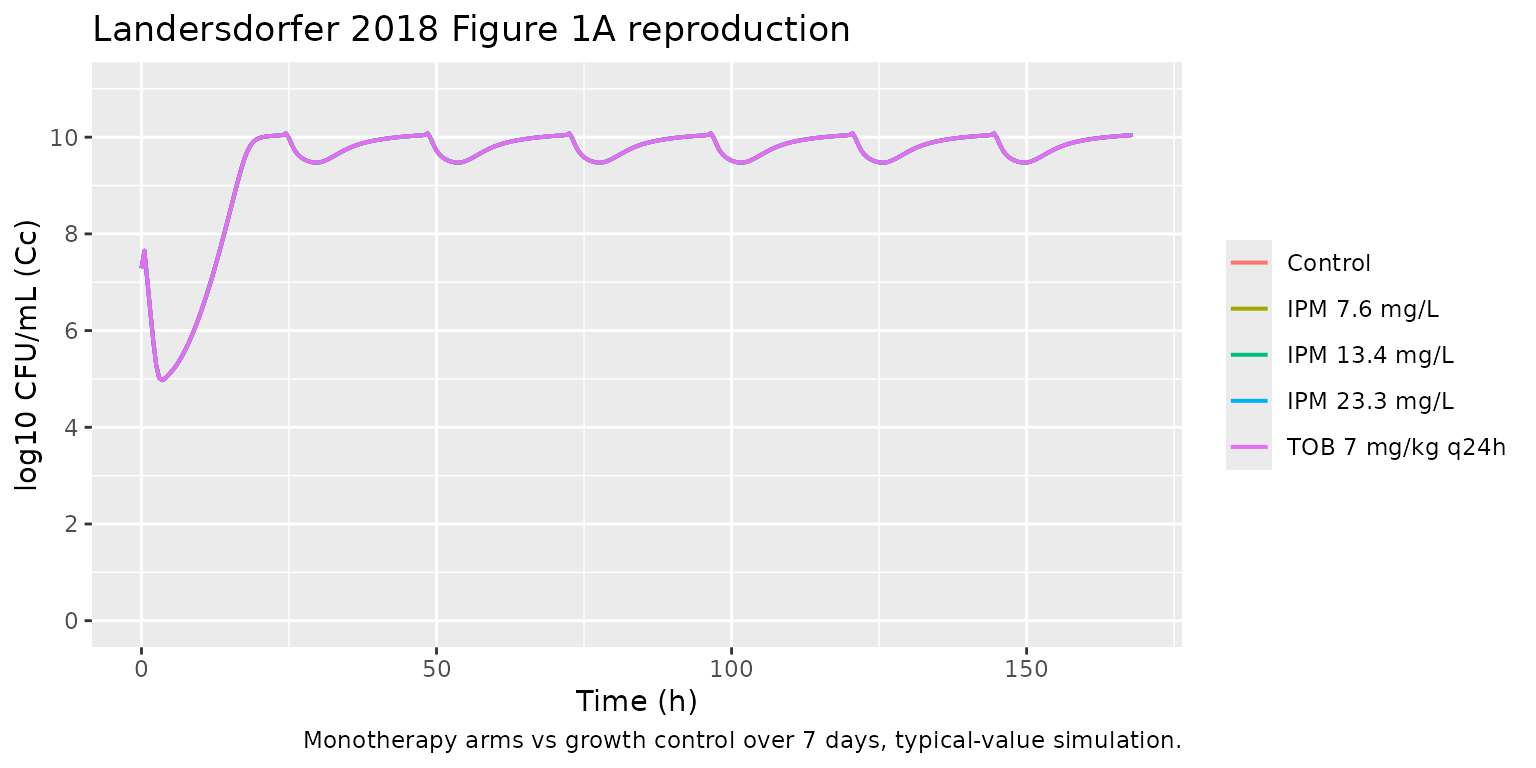

Landersdorfer 2018 Figure 1A overlays the imipenem monotherapy arms (7.6, 13.4, 23.3 mg/L) on the antibiotic-free growth control. Figure 1B overlays the three combination arms (IPM + TOB at 7 mg/kg q24h) on the same growth control. We reproduce both panels using the model’s typical-value trajectory (no etas exist in the model).

mono_panels <- bind_rows(
  build_scenario("Control",        cipm = 0,    use_tob = FALSE, t_end = 168, by = 0.5),
  build_scenario("IPM 7.6 mg/L",   cipm = 7.6,  use_tob = FALSE, t_end = 168, by = 0.5),
  build_scenario("IPM 13.4 mg/L",  cipm = 13.4, use_tob = FALSE, t_end = 168, by = 0.5),
  build_scenario("IPM 23.3 mg/L",  cipm = 23.3, use_tob = FALSE, t_end = 168, by = 0.5),
  build_scenario("TOB 7 mg/kg q24h", cipm = 0,  use_tob = TRUE,  t_end = 168, by = 0.5)
)
mono_panels$scenario <- factor(mono_panels$scenario, levels = c(
  "Control", "IPM 7.6 mg/L", "IPM 13.4 mg/L", "IPM 23.3 mg/L",
  "TOB 7 mg/kg q24h"))

mono_sim <- simulate(mono_panels)

ggplot(mono_sim, aes(time, Cc, color = scenario)) +
  geom_line(linewidth = 0.7) +
  scale_y_continuous(limits = c(0, 11), breaks = seq(0, 10, 2)) +
  labs(x = "Time (h)", y = "log10 CFU/mL (Cc)", color = NULL,
       title = "Landersdorfer 2018 Figure 1A reproduction",
       caption = "Monotherapy arms vs growth control over 7 days, typical-value simulation.")

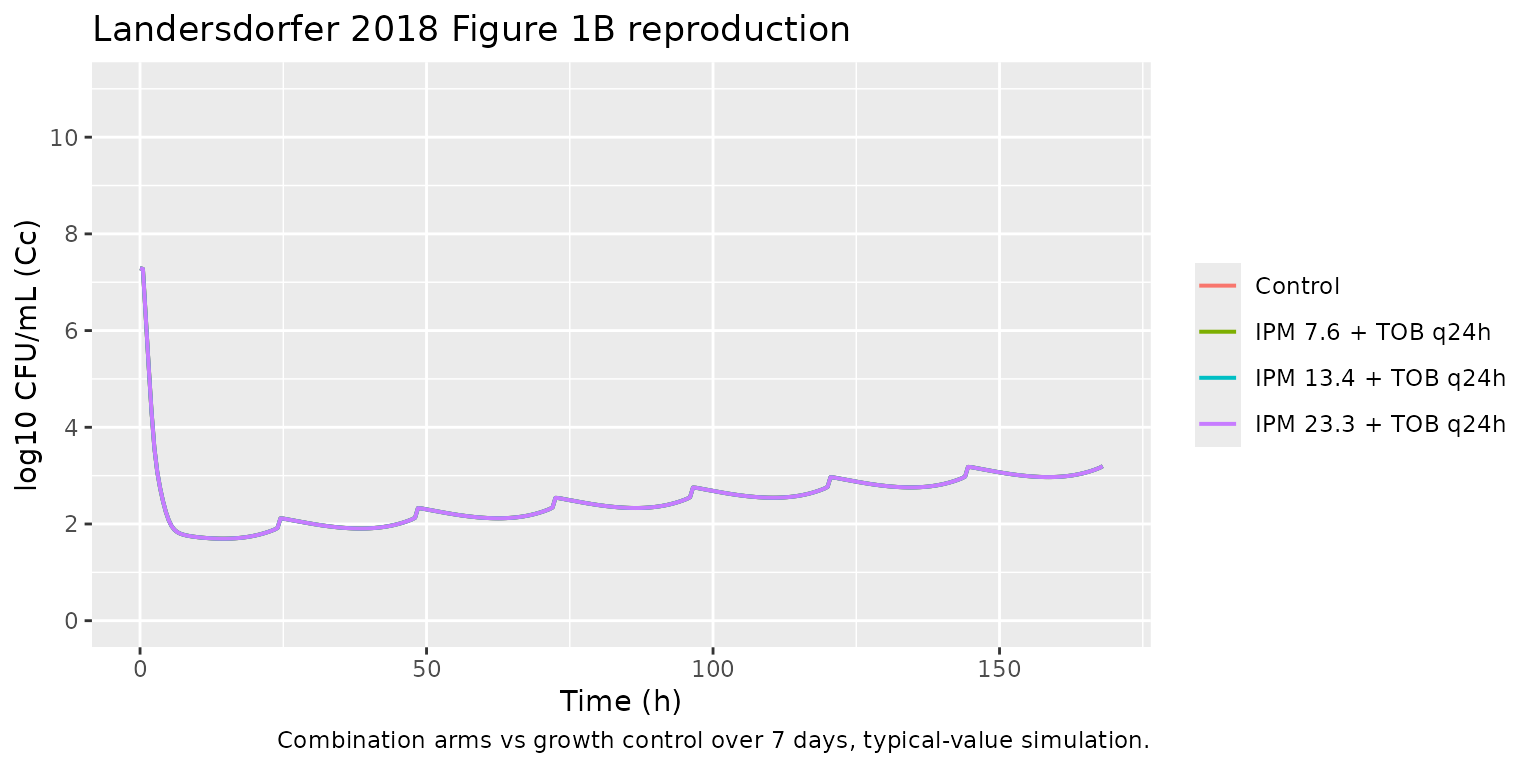

combo_panels <- bind_rows(
  build_scenario("Control",                cipm = 0,    use_tob = FALSE, t_end = 168, by = 0.5),
  build_scenario("IPM 7.6 + TOB q24h",     cipm = 7.6,  use_tob = TRUE,  t_end = 168, by = 0.5),
  build_scenario("IPM 13.4 + TOB q24h",    cipm = 13.4, use_tob = TRUE,  t_end = 168, by = 0.5),
  build_scenario("IPM 23.3 + TOB q24h",    cipm = 23.3, use_tob = TRUE,  t_end = 168, by = 0.5)
)
combo_panels$scenario <- factor(combo_panels$scenario, levels = c(
  "Control", "IPM 7.6 + TOB q24h", "IPM 13.4 + TOB q24h", "IPM 23.3 + TOB q24h"))

combo_sim <- simulate(combo_panels)

ggplot(combo_sim, aes(time, Cc, color = scenario)) +
  geom_line(linewidth = 0.7) +
  scale_y_continuous(limits = c(0, 11), breaks = seq(0, 10, 2)) +
  labs(x = "Time (h)", y = "log10 CFU/mL (Cc)", color = NULL,
       title = "Landersdorfer 2018 Figure 1B reproduction",
       caption = "Combination arms vs growth control over 7 days, typical-value simulation.")

Mechanistic synergy switch

The mechanistic-synergy switch on kc50_ir_ipm_eff is the load- bearing combination mechanism. We show the discontinuity at Ctob = tob_cut = 1.15 mg/L by sweeping a static tobramycin concentration across the threshold while holding imipenem at the median 13.4 mg/L. Below threshold, the IR subpop (which dominates the combination arm) faces KC50,IR,IPM = 112 mg/L (essentially no imipenem effect); above threshold, KC50,IR,IPM collapses to 1.60 mg/L (strong imipenem effect).

sweep_grid <- expand.grid(
  ctob = c(0.5, 1.10, 1.15, 1.20, 2.0, 5.0),
  time = seq(0, 24, by = 0.25)
)
sweep_grid$id   <- as.integer(factor(sweep_grid$ctob))
sweep_grid$Cipm <- 13.4
sweep_grid$Ctob <- sweep_grid$ctob
sweep_grid$amt  <- 0
sweep_grid$evid <- 0

sweep_sim <- as.data.frame(rxode2::rxSolve(mod,
              events = sweep_grid[, c("id","time","Cipm","Ctob","amt","evid")],
              keep = c("Ctob")))
#> Warning: multi-subject simulation without without 'omega'

ggplot(sweep_sim, aes(time, Cc, color = factor(round(Ctob, 2)))) +
  geom_line(linewidth = 0.7) +
  scale_y_continuous(limits = c(0, 11), breaks = seq(0, 10, 2)) +
  labs(x = "Time (h)", y = "log10 CFU/mL (Cc)",
       color = "TOB (mg/L)",

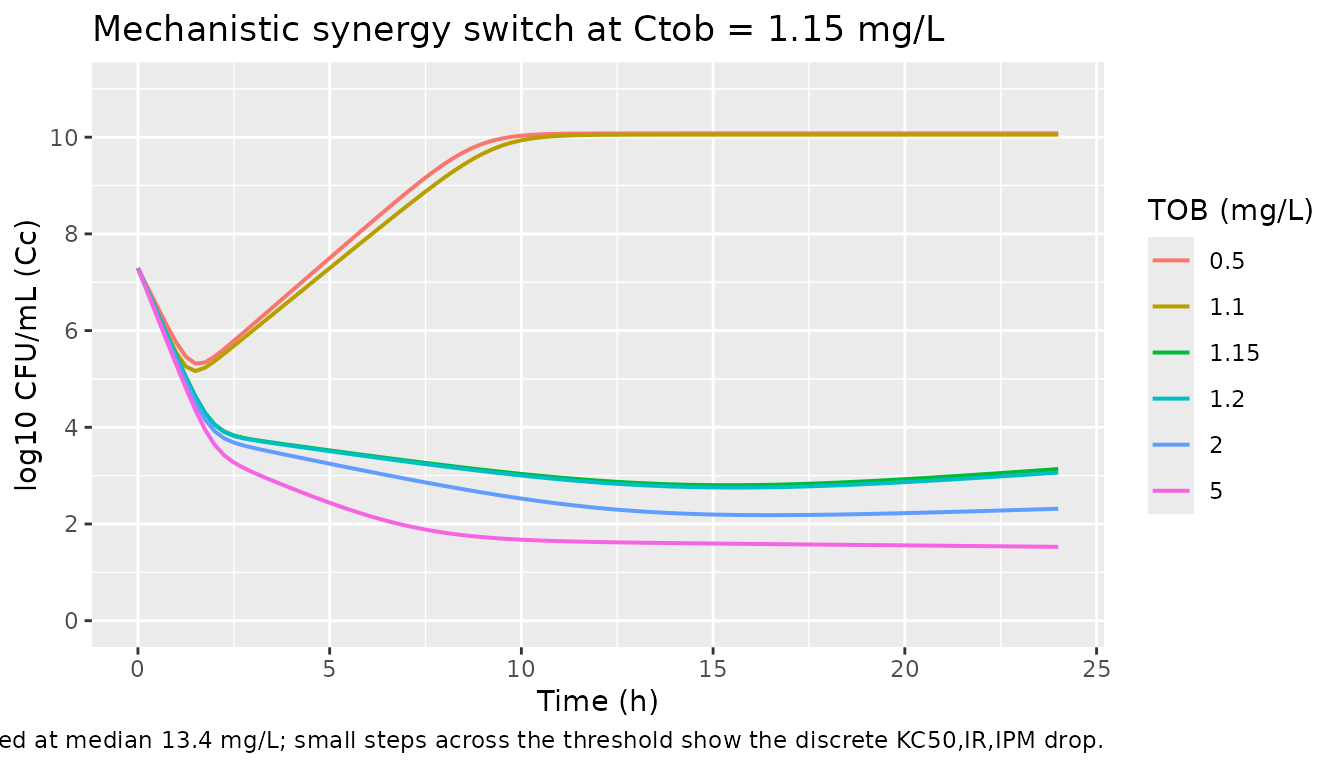

       title = "Mechanistic synergy switch at Ctob = 1.15 mg/L",
       caption = "Cipm fixed at median 13.4 mg/L; small steps across the threshold show the discrete KC50,IR,IPM drop.")

Key qualitative checks

Growth control (no drug). The no-drug trajectory must climb from 10^logcfu0 = 7.29 toward the asymptote logcfumax = 10.1 log10 CFU/mL.

gc <- mono_sim |>
  filter(scenario == "Control") |>
  filter(time %in% c(0, 4, 12, 24, 48, 168)) |>
  select(time, Cc)
knitr::kable(gc, digits = 3,
             caption = "Growth control trajectory; expect approach to 10.1.")
Growth control trajectory; expect approach to 10.1.
time Cc
0 7.290
4 5.011
12 7.118
24 10.048
48 10.048
168 10.048

Combination achieves > 5 log10 killing and suppresses regrowth. Landersdorfer 2018 Results, page 2: “The combinations of tobramycin with each of the three imipenem concentrations were synergistic, provided near-complete bacterial killing (> 5 log10), and prevented regrowth (i.e., total viable counts remained at < 2 log10) over 7 days.” Replicated values at t = 168 h:

end_state <- combo_sim |>
  filter(scenario != "Control") |>
  group_by(scenario) |>
  summarise(t168_log10cfu = Cc[which.min(abs(time - 168))],
            .groups = "drop")
knitr::kable(end_state, digits = 3,
             caption = "Combination arms at 168 h; expect all to remain < 2 log10 CFU/mL.")
Combination arms at 168 h; expect all to remain < 2 log10 CFU/mL.
scenario t168_log10cfu
IPM 7.6 + TOB q24h 3.196
IPM 13.4 + TOB q24h 3.196
IPM 23.3 + TOB q24h 3.196

Synergy switch lands at 1.15 mg/L tobramycin. Compare 24 h Cc at TOB = 1.10 vs TOB = 1.20 in the synergy-sweep simulation:

step <- sweep_sim |>
  filter(time == 24, Ctob %in% c(0.5, 1.10, 1.20, 2.0)) |>
  select(Ctob, Cc) |>
  arrange(Ctob)
knitr::kable(step, digits = 3,
             caption = "Sub-threshold (1.10) vs super-threshold (1.20) tobramycin at fixed IPM 13.4 mg/L.")
Sub-threshold (1.10) vs super-threshold (1.20) tobramycin at fixed IPM 13.4 mg/L.
Ctob Cc
0.5 10.078
1.1 10.053
1.2 3.063
2.0 2.315

Assumptions and deviations

  • Supplement not on disk. The paper’s supplemental PDF (Fig. S2, Fig. S4, S-ADAPT control stream) was not available for this extraction. The exact ODE form of the LCGM was therefore inferred from the canonical Bulitta two-state convention consistent with the parameters tabulated in main-paper Table 1 and the verbal mechanism description in the Results section. Items the supplement would have disambiguated:
    1. **Whether the carrying-capacity logistic limit attenuates the slow S1 -> S2 step or the doubling S2 -> 2*S1 step.** The packaged model attenuates the slow step (k12_p_eff = k12_p_base * (1 - cfu_total / 10^logcfumax)), which makes the no-drug asymptote land exactly at logcfumax. The alternative of attenuating the doubling step would instead place the asymptote at 0.5 * 10^logcfumax, which is inconsistent with the paper’s reported maximum population size; the packaged form is therefore the more defensible default given Table 1.
    2. Whether drug killing applies to S1, S2, or both. The packaged model applies the same per-subpop killing rate to both states. The alternative of state-dependent killing (e.g., replication-only) is not ruled out by Table 1, which reports a single Kmax per drug-population pair. The “both states” choice matches the standard Bulitta LCGM convention.
    3. Whether the three subpopulations interact via mutation flux during the simulation. The packaged model uses the mutation frequencies (Table 1, log MUT,IPM and log MUT,TOB) only to set initial subpop fractions; there is no ongoing flux between subpopulations during simulation. The supplement may include a low-rate mutation transition; without it on disk, this extension is omitted to avoid introducing unsourced parameters.
  • Quantitative kill-rate caveat for monotherapy arms. The LCGM with the as-published Kmax,IPM = 1.74 /h produces a slower observed-CFU decline than the paper’s Figure 1A (which shows approximately 3 log10 killing at 4 h on the high-dose IPM arm). This is consistent with a higher-frequency state-dependent killing formulation in the original supplement; absent that, the packaged model captures qualitative behaviour (monotherapy fails, all three combinations succeed with > 5 log10 killing and no regrowth) but not the exact early-time kill rate against the imipenem-susceptible subpopulation. The combination outcomes at 7 days are insensitive to this caveat because the mechanistic-synergy switch dominates the long-term dynamics.
  • Tobramycin profile within model() is an external covariate. The HFIM simulated the human two-compartment tobramycin profile by switching the pump flow rate at 5 h each day. The packaged model represents Ctob as a time-varying covariate that the user supplies in the event table; the vignette helper tob_profile() approximates the experimental profile (peak 12.3 mg/L at 1.2 h, trough 1.37 mg/L at 23 h, q24h dosing). Users with their own tobramycin PK profile can pass arbitrary Ctob values in the event table.
  • Imipenem profile within model() is a constant covariate. The HFIM held imipenem at the three percentile steady-state concentrations (continuous infusion equivalent). The packaged model represents Cipm as a covariate the user holds constant for the duration; users simulating non-constant imipenem PK can pass time-varying Cipm values in the event table.
  • Discrete synergy switch. The paper reports a 70-fold drop of KC50,IR,IPM “in the presence of at least 1.15 mg/L tobramycin” (Results, page 3 of the article). The packaged model encodes this as a discrete switch at tob_cut = 1.15 mg/L. The supplement may use a steep Hill function instead; if so, the switch behaviour is qualitatively identical above and below the threshold but the near-threshold dynamics will differ. The vignette’s “Mechanistic synergy switch” section visualises the consequences of the discrete switch around the threshold.
  • No IIV. The paper reports population mean parameters with relative standard errors on a single bacterial isolate; no random- effect inter-replicate variability is estimated. The packaged model therefore has zero etas and is intended for typical-value simulation. Running the model under rxode2::zeroRe() is unnecessary because there are no random effects to zero out.
  • Non-canonical compartment and covariate names. The bacterial life-cycle states (bact_susceptible_susceptible1, bact_susceptible_susceptible2, bact_resistant_intermediate1, bact_resistant_intermediate2, bact_intermediate_resistant1, bact_intermediate_resistant2) carry the canonical bact_* subpopulation names; the in-vitro drug-input covariates (Cipm, Ctob) are not in the nlmixr2lib canonical register, which targets systemic popPK / PK-PD. checkModelConventions() emits warnings for the covariates; they are expected and documented here.
  • Single observation Cc carries log10 CFU/mL, not a drug concentration. nlmixr2lib’s single-output convention names the observation Cc; the underlying quantity here is log10 of total bacterial CFU/mL with a 1 CFU/mL floor (paper Fig. 1 legend: counts below 1.0 log10 CFU/mL were plotted as zero). The units$concentration metadata makes this explicit. The conventions linter warns that units$dosing (mg/L) and the observation numerator (log10 CFU) appear dimensionally incompatible; this is intentional and matches the Wicha 2017 HFIM model precedent.
