Control for fmeMcmc estimation method in nlmixr2

Usage

fmeMcmcControl(
  jump = NULL,
  prior = NULL,
  niter = 1000L,
  outputlength = niter,
  burninlength = 0,
  updatecov = niter,
  covscale = NULL,
  ntrydr = 1,
  drscale = NULL,
  verbose = FALSE,
  seed = 99,
  returnFmeMcmc = FALSE,
  stickyRecalcN = 4,
  maxOdeRecalc = 5,
  odeRecalcFactor = 10^(0.5),
  useColor = NULL,
  printNcol = NULL,
  print = 1L,
  normType = c("rescale2", "mean", "rescale", "std", "len", "constant"),
  scaleType = c("none", "nlmixr2", "norm", "mult", "multAdd"),
  scaleCmax = 1e+05,
  scaleCmin = 1e-05,
  scaleC = NULL,
  scaleTo = 1,
  rxControl = NULL,
  optExpression = TRUE,
  sumProd = FALSE,
  literalFix = TRUE,
  literalFixRes = TRUE,
  addProp = c("combined2", "combined1"),
  calcTables = TRUE,
  compress = TRUE,
  covMethod = c("mcmc", "r", ""),
  adjObf = TRUE,
  ci = 0.95,
  sigdig = 4,
  sigdigTable = NULL,
  ...
)

Arguments

jump: jump length, either a number, a vector with length equal to the total number of parameters, a covariance matrix, or a function that takes as input the current values of the parameters and produces as output the perturbed parameters. See details.
prior: -2*log(parameter prior probability), either a function that is called as prior(p) or NULL; in the latter case a non-informative prior is used (i.e. all parameters are equally likely, depending on lower and upper within min and max bounds).
niter: number of iterations for the MCMC.
outputlength: number of iterations kept in the output; should be smaller or equal to niter.
burninlength: number of initial iterations to be removed from output.
updatecov: number of iterations after which the parameter covariance matrix is (re)evaluated based on the parameters kept thus far, and used to update the MCMC jumps.
covscale: scale factor for the parameter covariance matrix, used to perform the MCMC jumps.
ntrydr: maximal number of tries for the delayed rejection procedure. It is generally not a good idea to set this to a too large value.
drscale: for each try during delayed rejection, the cholesky decomposition of the proposal matrix is scaled with this amount; if NULL, it is assumed to be c(0.2,0.25, 0.333, 0.333, ...)
verbose: if TRUE or 1: prints extra output, if numeric value i > 1, prints status information every i iterations.
seed: an integer seed used for the mcmc chain. The chain is fully determined by this seed, so a fixed value makes the fit reproducible. The run is wrapped in rxode2::rxWithSeed(), which restores the prior random number generator state afterward, so seeding the fit does not disturb the calling session's stream. Vary this to explore different chains.
returnFmeMcmc: return the fmeMcmc output instead of the nlmixr2 fit
stickyRecalcN: The number of bad ODE solves before reducing the atol/rtol for the rest of the problem.
maxOdeRecalc: Maximum number of times to reduce the ODE tolerances and try to resolve the system if there was a bad ODE solve.
odeRecalcFactor: The ODE recalculation factor when ODE solving goes bad, this is the factor the rtol/atol is reduced
useColor: Logical (or `NULL`) emit ANSI bold/color escapes in the iteration print. `NULL` (default) defers to [crayon::has_color()].
printNcol: Integer (or `NULL`) parameter columns per row before wrapping. `NULL` (default) uses `floor((getOption("width") - 23) / 12)`.
print: Either a scalar print-frequency (`0` = suppress, `1` (default) = every evaluation, `N` = every Nth), OR a pre-built [iterPrintControl()] object. Equivalent to `iterPrintControl(every = print, ncol = printNcol, useColor = useColor)`.
normType: Parameter normalization/scaling used to get scaled initial values for scaleType, of the form Vscaled = (Vunscaled-C1)/C2 (see Feature Scaling; rescale2 follows the OptdesX manual): "rescale2" scales all parameters to (-1, 1); "rescale" (min-max) scales to (0, 1); "mean" centers on the mean with range (0, 1); "std" standardizes by mean/sd; "len" scales to unit (Euclidean) length; "constant" performs no normalization (C1=0, C2=1).
scaleType: The scaling scheme for nlmixr2: "nlmixr2" (default) scales as (current-init)*scaleC[i] + scaleTo, with scaleTo from normType and scales from scaleC; "norm" uses the simple scaling from normType; "mult" scales multiplicatively as current/init*scaleTo; "multAdd" scales linearly ((current-init)+scaleTo) for parameters in an exponential block (e.g. exp(theta)) and multiplicatively otherwise.
scaleCmax: Maximum value of the scaleC to prevent overflow.
scaleCmin: Minimum value of the scaleC to prevent underflow.
scaleC: Scaling constant used with scaleType="nlmixr2"; when not specified, chosen by parameter type to keep gradient sizes similar on a log scale: `1` for exp()-transformed/power/boxCox/ yeoJohnson parameters, `0.5*abs(est)` for additive/proportional/ lognormal error parameters, `abs(1/digamma(est+1))` for factorials, and `log(abs(est))*abs(est)` for log-scale parameters. May be set explicitly per parameter if these defaults don't apply well.
scaleTo: Scale the initial parameter estimate to this value. By default this is 1. When zero or below, no scaling is performed.
rxControl: `rxode2` ODE solving options during fitting, created with `rxControl()`
optExpression: Optimize the rxode2 expression to speed up calculation. By default this is turned on.
sumProd: Is a boolean indicating if the model should change multiplication to high precision multiplication and sums to high precision sums using the PreciseSums package. By default this is FALSE.
literalFix: boolean, substitute fixed population values as literals and re-adjust ui and parameter estimates after optimization; Default is `TRUE`.
literalFixRes: boolean, substitute fixed population values as literals and re-adjust ui and parameter estimates after optimization; Default is `TRUE`.
addProp: Type of additive-plus-proportional error: `"combined1"`, where standard deviations add: $$y = f + (a + b\times f^c) \times \varepsilon$$; or `"combined2"`, where variances add: $$y = f + \sqrt{a^2 + b^2\times f^{2\times c}} \times \varepsilon$$. Here y = observed, f = predicted, a = additive sd, b = proportional/power sd, c = power exponent (1 in the proportional case).
calcTables: This boolean is to determine if the foceiFit will calculate tables. By default this is TRUE
compress: Should the object have compressed items
covMethod: Method for calculating the covariance. "analytic" (the default) uses the exact analytic observed-information R-matrix (reported as $R^{-1}$) and additionally returns the residual and Omega standard errors; it covers FOCEI/FOCE fits with additive, proportional, or combined error, mu-referenced/covariate/other structural parameters (and non-mu-referenced etas), and SD-scale inter-occasion variability, and emits a message and falls back to the finite-difference Hessian for anything out of scope (FO, nAGQ > 1, censoring, DV-transformed error, bounded-parameter transforms, a structural theta shared by two etas, non-SD iovXform, or a pure-proportional variance that vanishes at a near-zero prediction). The finite-difference methods use R (the Hessian) and S (the sum of individual gradient cross-products at the empirical Bayes estimates): "r,s" sandwich (solve(R)%*%S%*%solve(R)), "r" Hessian-based (solve(R)), "s" cross-product-based (solve(S)), or "" to skip the covariance step.
adjObf: is a boolean to indicate if the objective function should be adjusted to be closer to NONMEM's default objective function. By default this is TRUE
ci: Confidence level for some tables. By default this is 0.95 or 95% confidence.
sigdig: Optimization significant digits; controls the inner/outer optimization tolerance (10^-sigdig), ODE solver tolerance (0.5*10^(-sigdig-2), or 0.5*10^(-sigdig-1.5) for sensitivity/steady-state with liblsoda), and boundary check tolerance (5*10^(-sigdig+1)).
sigdigTable: Significant digits in the final output table. If not specified, then it matches the significant digits in the `sigdig` optimization algorithm. If `sigdig` is NULL, use 3.
...: Ignored parameters

Value

fmeMcmc control structure

Author

Matthew L. Fidler

Examples


# \donttest{
# A logit regression example with emax model

dsn <- data.frame(i=1:1000)
dsn$time <- exp(rnorm(1000))
dsn$DV=rbinom(1000,1,exp(-1+dsn$time)/(1+exp(-1+dsn$time)))

mod <- function() {
 ini({
   E0 <- 0.5
   Em <- 0.5
   E50 <- 2
   g <- fix(2)
 })
 model({
   v <- E0+Em*time^g/(E50^g+time^g)
   ll(bin) ~ DV * v - log(1 + exp(v))
 })
}

fit2 <- nlmixr(mod, dsn, est="fmeMcmc")
#>
#>
#>
#>
#> ℹ parameter labels from comments are typically ignored in non-interactive mode
#> ℹ Need to run with the source intact to parse comments
#> → pruning branches (`if`/`else`) of population log-likelihood model...
#> ✔ done
#> → loading llik model into symengine environment...
#> → finding duplicate expressions in population log-likelihood model...
#> → optimizing duplicate expressions in population log-likelihood model...
#> ✔ done
#>
#>
#> → loading into symengine environment...
#> → pruning branches (`if`/`else`) of full model...
#> ✔ done
#> → finding duplicate expressions in EBE model...
#> → optimizing duplicate expressions in EBE model...
#> → compiling EBE model...
#>
#>
#> ✔ done
#> → Calculating residuals/tables
#> ✔ done
#> → compress origData in nlmixr2 object, save 8328
#> → compress parHistData in nlmixr2 object, save 10008

print(fit2)
#> ── nlmixr² log-likelihood fmeMcmc ──
#>
#>           OBJF      AIC      BIC Log-likelihood Condition#(Cov) Condition#(Cor)
#> lPop -1275.217 568.6601 583.3834      -281.3301        200.1968        46.25382
#>
#> ── Time (sec $time): ──
#>
#>              setup    optimize covariance preprocess postprocess table compress
#> elapsed 0.03216184 0.002070661   5.66e-06      0.056       0.008 0.033    0.022
#>            other
#> elapsed 2.162762
#>
#> ── ($parFixed or $parFixedDf): ──
#>
#>        Est.     SE  %RSE   Back-transformed(95%CI)
#> E0  -0.7825 0.2755 35.20 -0.7825 (-1.322, -0.2426)
#> Em    4.844  1.075 22.20      4.844 (2.736, 6.952)
#> E50   2.320 0.3079 13.27      2.320 (1.717, 2.923)
#> g     2.000  FIXED FIXED                     2.000
#>
#>   Covariance Type ($covMethod): mcmc
#>   Censoring ($censInformation): No censoring
#>
#> ── Fit Data (object is a modified tibble): ──
#> # A tibble: 1,000 × 5
#>   ID      TIME    DV  IPRED      v
#>   <fct>  <dbl> <dbl>  <dbl>  <dbl>
#> 1 1     0.0529     0 -0.377 -0.780
#> 2 1     0.0603     0 -0.378 -0.779
#> 3 1     0.0710     0 -0.378 -0.778
#> # ℹ 997 more rows

# you can also get the FME modMCMC output with

# fit2$fmeMcmc

# And use it in the summaries from FME, i.e.

summary(fit2$fmeMcmc)
#>              E0        Em      E50
#> mean -0.5654944 3.1879493 1.960768
#> sd    0.2754586 1.0753887 0.307860
#> min  -0.9487418 0.3892937 1.197740
#> max   0.5106981 4.8627463 2.773992
#> q025 -0.7265166 2.7256953 1.770652
#> q050 -0.6304920 3.3302785 1.941923
#> q075 -0.5180678 4.1146109 2.176642

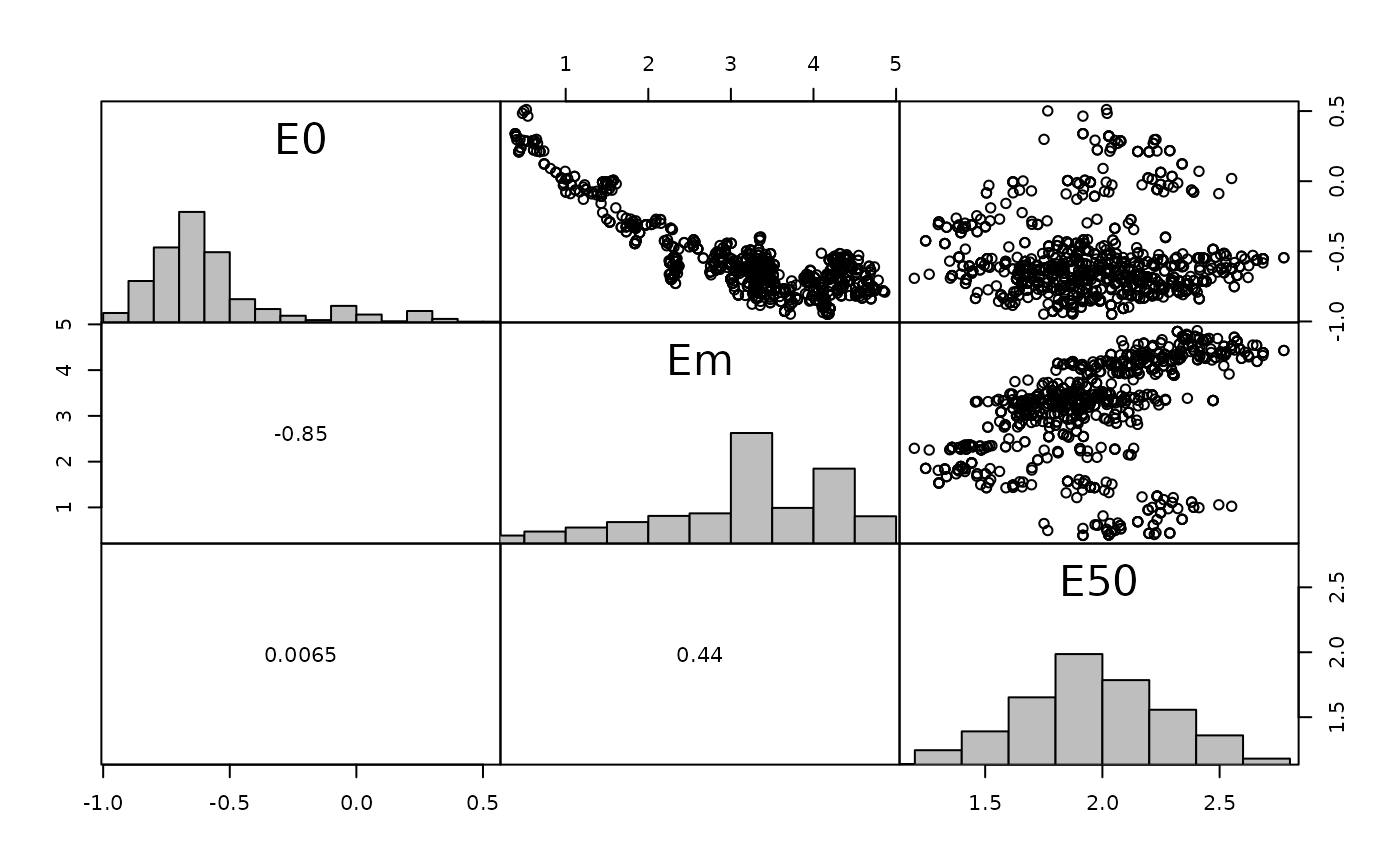

pairs(fit2$fmeMcmc)
#> Warning: argument 1 does not name a graphical parameter
#> Warning: argument 1 does not name a graphical parameter
#> Warning: argument 1 does not name a graphical parameter


# and you can also use the coda package with `as.mcmc()`
coda::raftery.diag(coda::as.mcmc(fit2))
#>
#> Quantile (q) = 0.025
#> Accuracy (r) = +/- 0.005
#> Probability (s) = 0.95
#>
#> You need a sample size of at least 3746 with these values of q, r and s

# }
